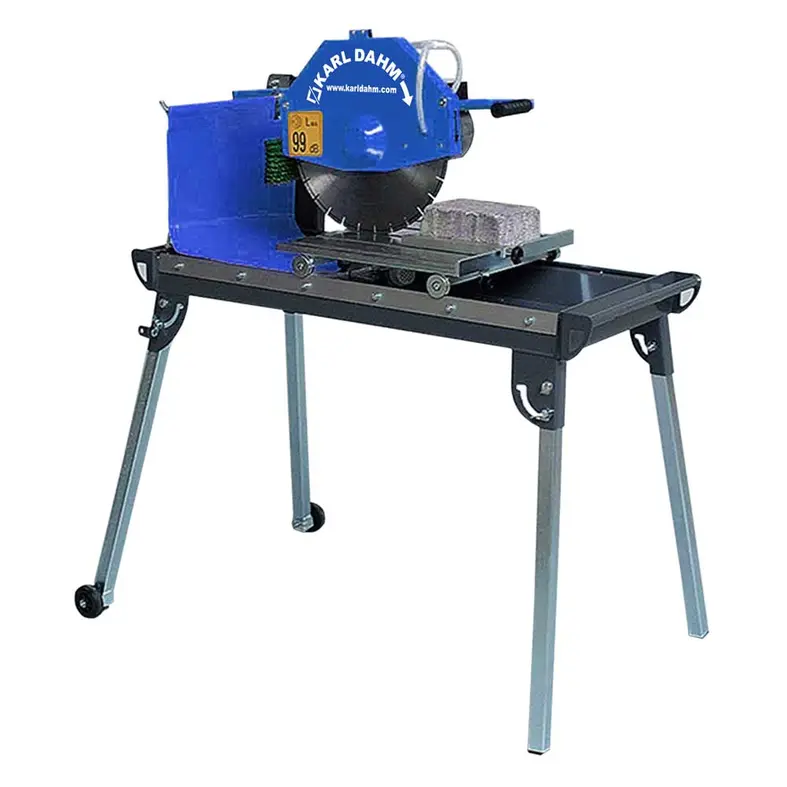

Stone Cutting Machine D15 + DNS 6 Concrete Pro – Precision with Tilting Head for Heavy-Duty Use (Art. No. 35145)

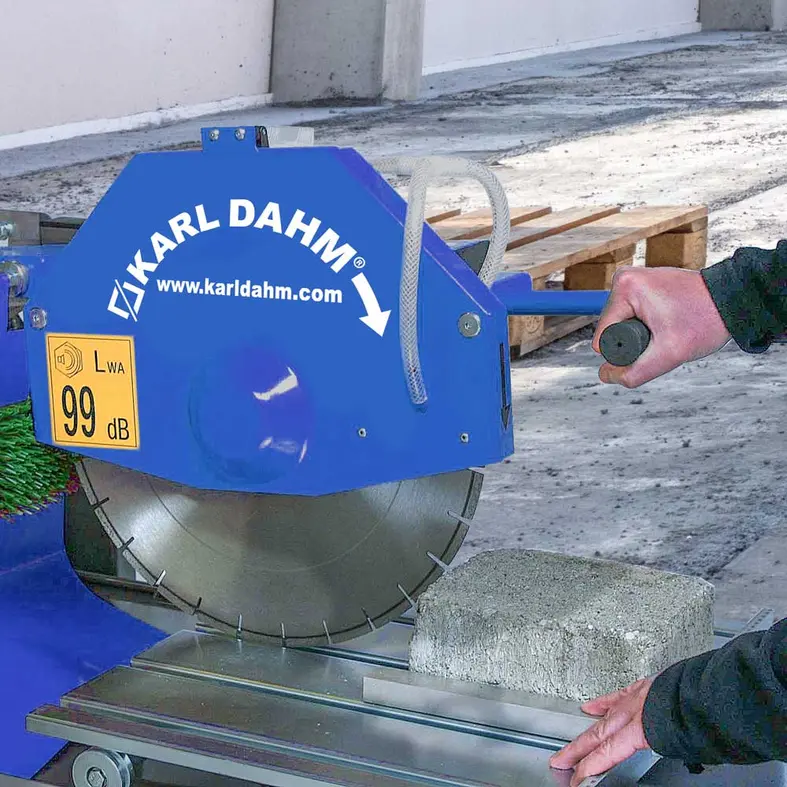

The D15 stone cutting machine serves as a professional stationary wet-cutting system that sets new standards in flexibility. The standout feature of this set: Karl Dahm combines the D15 with the high-performance DNS 6 diamond cutting wheel (Ø 400 mm). This synergy allows craftsmen to process mineral building materials such as concrete, brick, and natural stone not only efficiently but with extreme versatility. The centerpiece of the unit is the integrated tilting head, which enables you to execute mitre cuts (jolly cuts) directly and without the need for time-consuming additional equipment.
Equipped with a powerful 2.2 kW electric motor (230 V), the D15 + DNS 6 stone cutting machine handles even abrasive materials effortlessly. With an impressive cutting depth of up to 125 mm, you can cut thick paving slabs or block steps precisely in a single pass. The effective cutting length of 600 mm on the stable rolling table provides ample capacity for common large formats used in modern gardening and landscaping.
Advantages at a Glance:
By choosing the set Art. No. 35145, you benefit from technical innovations specifically developed for the rigorous demands of the construction site. The D15 + DNS 6 offers the following added values:
- Tilting Cutting Unit: Realize jolly cuts for perfect corner joints thanks to the infinitely adjustable tilting head – a decisive advantage over standard models.
- Innovative Cleaning Concept: The water tray features an overflow plug and a special collection bucket that effectively separates cutting sludge from the pump cycle.
- Outstanding Service Life: The included 400 mm DNS 6 diamond blade is optimized for concrete with its special serration, ensuring fast progress and minimal wear.

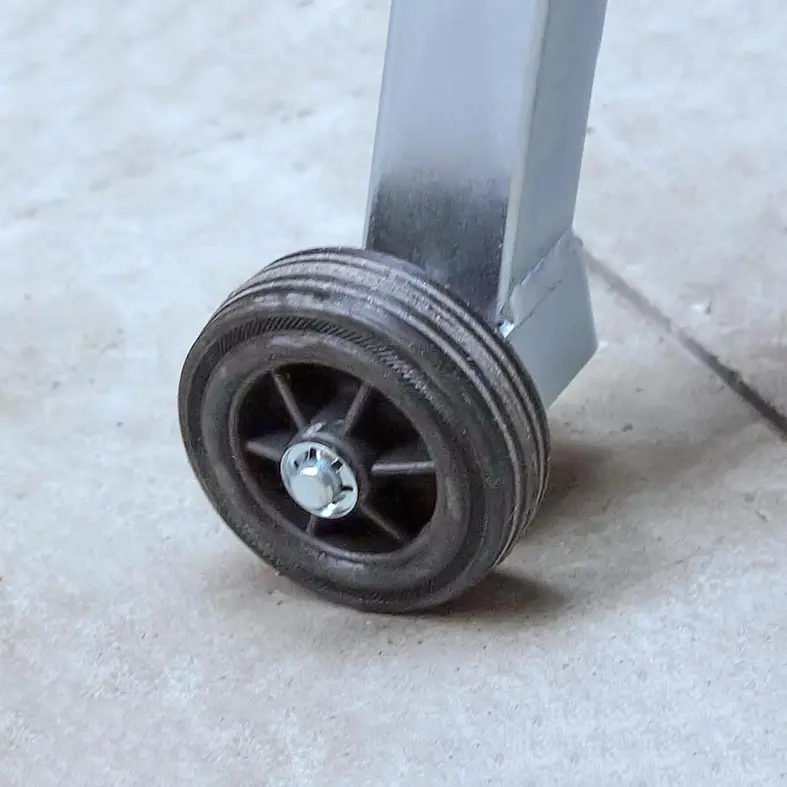

- Site-Ready Mobility: Thanks to the foldable legs, the machine can be transported to save space and set up quickly and securely at the job site.
- Health-Conscious Operation: The integrated electric water pump guarantees constant cooling and binds hazardous fine dust directly at the saw blade.
Technical Data:
The specifications of the D15 are designed for maximum performance in professional applications. Here is an overview of the key data:
- Motor Power: 2.2 kW (230 V connection) – Protection class IP54.
- Cutting Capacity: Cutting depth up to 125 mm; maximum cutting length 600 mm.
- Tooling: Includes DNS 6 diamond cutting wheel (Ø 400 mm).
- Arbor: 25.4 mm cutting shaft for universal blade compatibility.
- Weight: approx. 73 kg in a robust steel construction for maximum smooth running.
- Dimensions: 1140 x 730 x 1380 mm (operating dimensions).
Maintenance and Application Notes for Long-Term Use
To ensure the long-term precision of the rolling table and the functionality of the tilting head, clean the guide rails regularly to remove material residue. Thanks to the practical bucket system, cutting sludge can be easily disposed of without having to flood the entire machine. Always flush the system with fresh water after finishing work to extend the life of the water pump and prevent deposits in the supply lines.
Frequently Asked Questions (FAQ)
What advantage does the D15 tilting head offer?
Unlike machines with a fixed head, you can tilt the saw blade. This allows for precise mitre cuts (45°) directly on the workpiece without having to prop it up in an unstable position.
How does the sludge collection system work?
Used water flows through an overflow plug into a separate bucket where heavy sediments settle. The pump then draws in cleaner water, which significantly reduces wear and tear.
Does the machine require a high-voltage power connection?
No, the D15 stone cutting machine operates via a conventional 230 V plug. This makes it extremely flexible for use on renovation sites or for residential projects.
Can I cut granite with the included blade?
The DNS 6 is a specialist for concrete products. For extremely hard natural stone or porcelain stoneware, we recommend switching to a specialized Karl Dahm cutting wheel to achieve the best edge quality.
Are the tools for blade changes included?
Yes, all necessary assembly tools for a quick diamond blade change are included in the set, so you are ready for immediate use.
How do I prepare the machine for transport?
Drain the water completely and lock the rolling table and the pendulum arm. The legs can be easily folded up so that the machine can be loaded by two people without difficulty.
