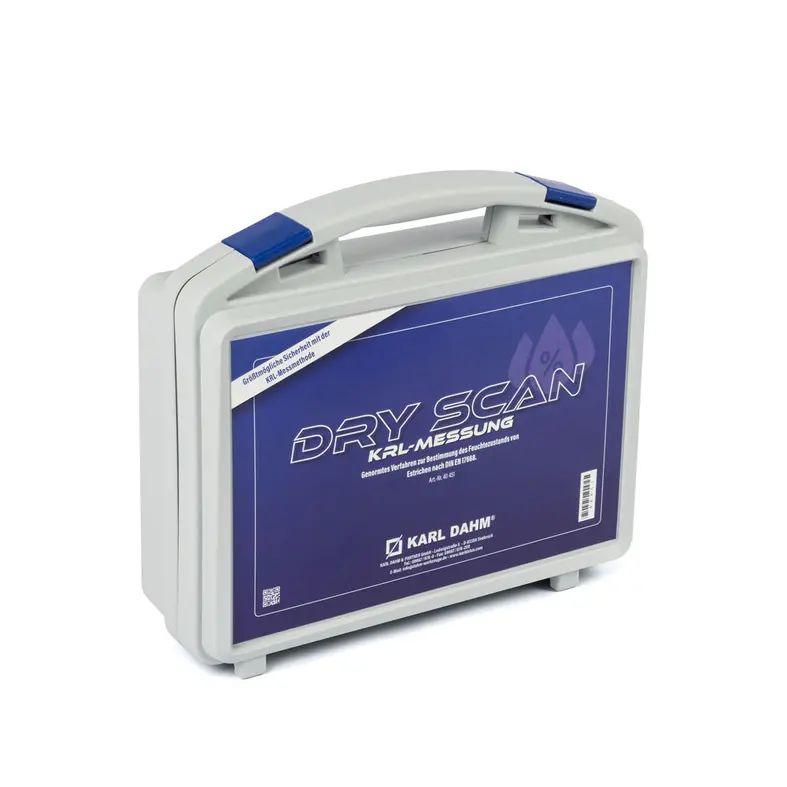

Dry Scan – KRL measurement by Karl Dahm for modern screed testing
The Dry Scan - KRL measurement by Karl Dahm is a modern solution for determining the moisture potential in screeds and concrete according to the KRL method in compliance with DIN EN 17668:2022. The compact measuring system was specially developed for professional use on construction sites and enables precise assessment of the readiness for covering of modern screeds.
Especially with screeds containing additives, accelerators or modern binding agents, the classic CM method is often no longer sufficient to reliably assess the actual moisture condition. The innovative Dry Scan - KRL measurement by Karl Dahm supports craftsmen, flooring installers and tilers in obtaining reliable measurement results directly on site.

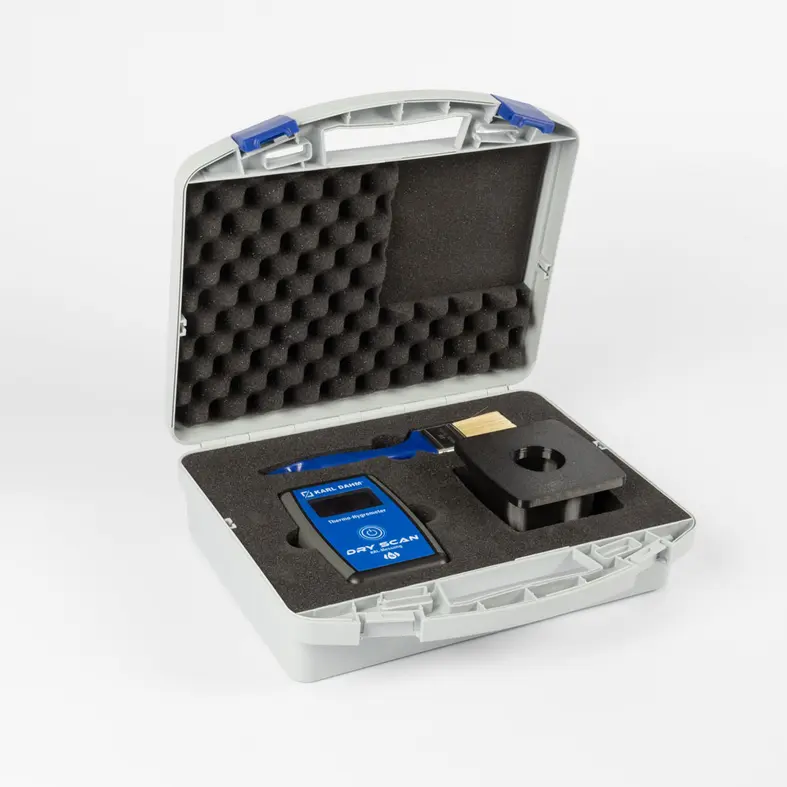

Scope of delivery Dry Scan – KRL measurement by Karl Dahm

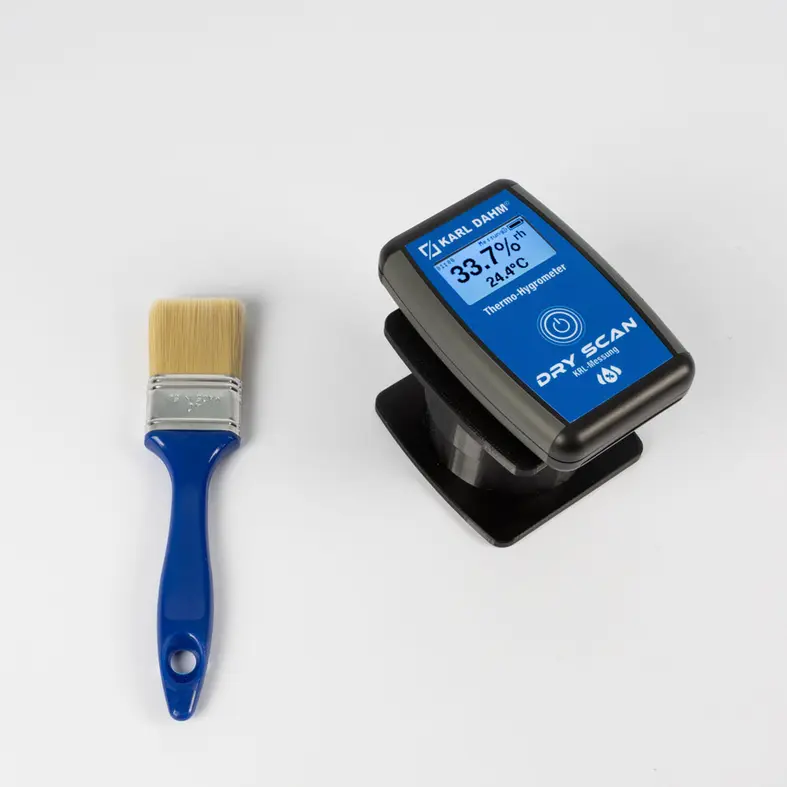

- “Dry Scan” thermo-hygrometer for KRL measurement
- Sample container
- Brush
- Sample bags
- Report for documenting measurement results – also available to download free of charge from the shop.
Download: KLR log for documentation. Start download.
Modern KRL measurement for precise moisture evaluation
The KRL measurement is now considered the current state of the art for assessing the readiness for covering of screeds. Unlike the classic CM measurement, the method does not only measure the residual moisture of the material, but the actual moisture condition via the corresponding relative humidity of the extracted screed sample.
The system automatically measures humidity every three minutes and reliably documents up to 120 measurements. Recording ends automatically as soon as the difference between two consecutive measured values is less than 1%. This enables the device to provide safe and standard-compliant moisture evaluation for modern screed systems.

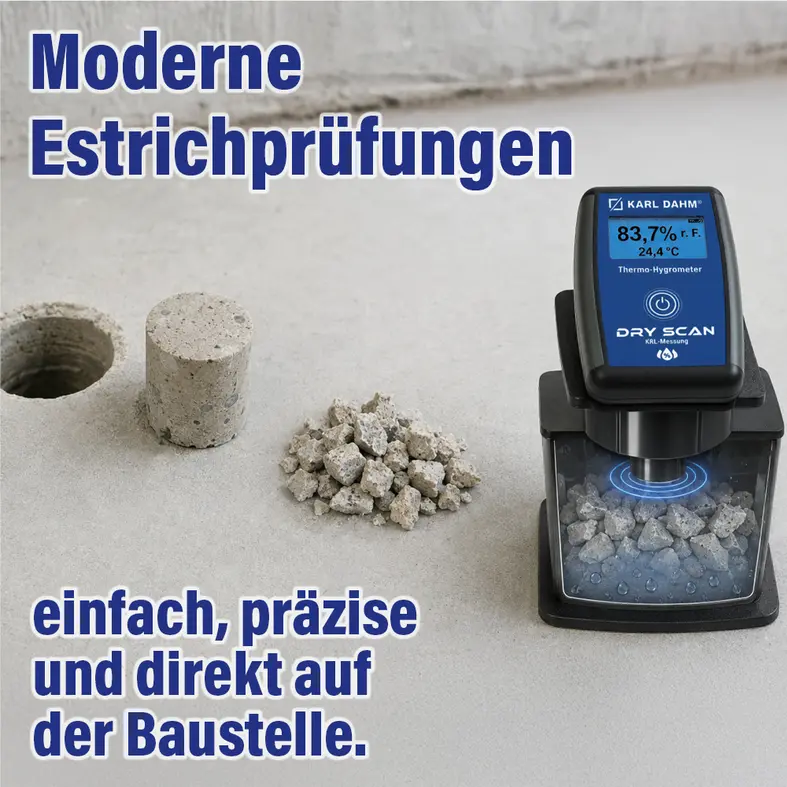

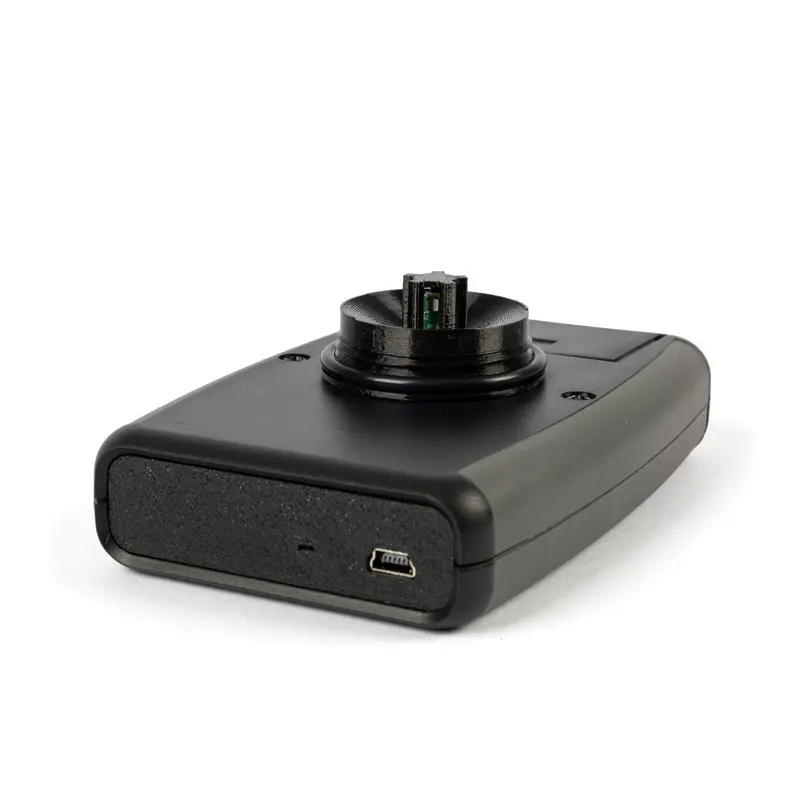

Compact KRL measuring device for construction site use
The modern KRL measuring device impresses with its compact design, easy operation and high practicality on construction sites. One-button operation enables particularly simple handling, while the integrated BT function supports convenient data transfer to the mobile app.
The measured values can be digitally documented and evaluated. This makes the device ideal for professional screed testing and modern construction site workflows.
Moisture measuring device with intelligent recording
The integrated moisture measuring device automatically records measurement values and supports users in reliably assessing moisture conditions. After completion of the measurement, the display automatically alternates between the current measured value and the final value.
The intelligent sleep mode of the device is particularly practical. If the measuring device is not used for 30 seconds, it automatically switches to energy-saving mode and later resumes recording independently. This supports longer battery life in everyday construction site use.
Alternative to CM measuring devices for modern screeds
The KRL method has now established itself as a modern alternative to CM measuring devices. Especially with modern screeds containing additives or accelerated drying systems, the method enables significantly more precise evaluation of the actual moisture condition.
The KRL measuring device is an innovative alternative to CM measuring devices to increase safety when assessing readiness for covering and to prevent later moisture damage.
The combination of easy operation, digital documentation and standard-compliant moisture measurement makes the system an ideal solution for professional users in flooring, tiling and screed applications.
FAQ about the Dry Scan – KRL measurement by Karl Dahm
What is the Dry Scan – KRL measurement by Karl Dahm?
The Dry Scan is a modern measuring system for determining the moisture potential in screeds and concrete according to the KRL method in compliance with DIN EN 17668:2022.

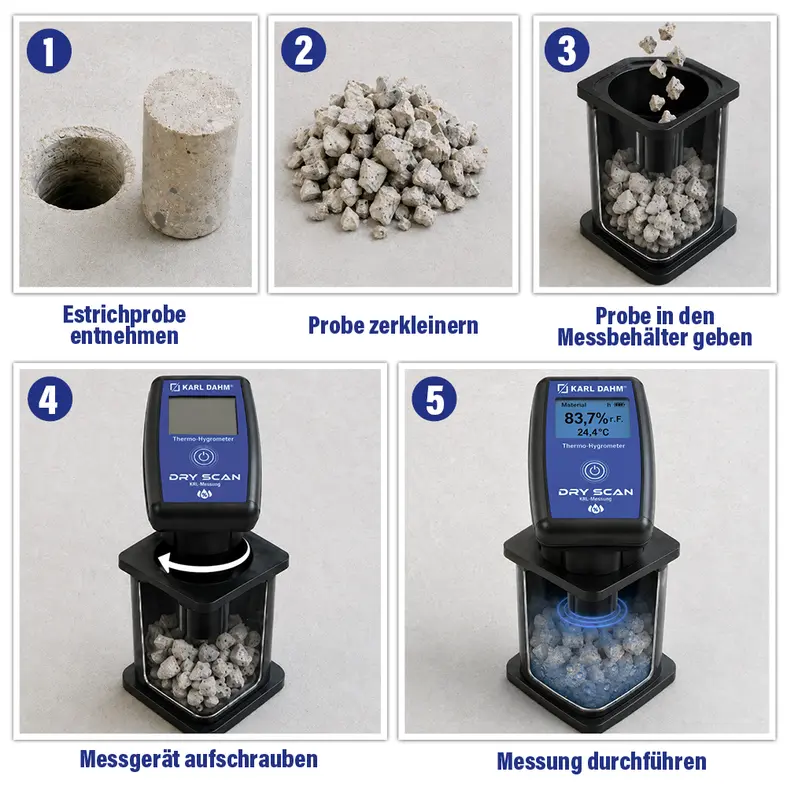

How does the KRL measurement work?
During KRL measurement, the corresponding relative humidity of a screed sample is measured. This allows the actual moisture condition of the screed to be determined precisely.
What are the advantages of the KRL measuring device?
The KRL measuring device impresses with automatic measurement recording, digital documentation via app, simple operation and high practicality on construction sites.
Is the device an alternative to CM measuring devices?
Yes, the system is considered a modern alternative to CM measuring devices and is particularly suitable for modern screeds with additives or accelerated drying systems.
Who is the moisture measuring device suitable for?
The moisture measuring device is ideal for tilers, flooring installers, screed installers and craftsmen who want to carry out safe and standard-compliant moisture evaluations.
Discover more accessories and CM measuring devices
Also discover additional accessories for precise KRL measurements as well as professional CM measuring devices for safe screed testing on construction sites.
