Raimondi Tile Cutter – Precision Rail Cutting System for Large-Format Tiles
The Raimondi tile cutter is a professional rail cutting system designed for precise, clean, and efficient work with standard and large-format tiles. Developed to meet the highest demands of professional tile installers, this system is ideal for tiles with a thickness of 3 to 15 mm and a maximum cutting length of up to 327 cm.
Advantages: Raimondi Tile Cutter
- Suitable for standard & large-format tiles
- Cutting lengths up to 327 cm
- For tile thicknesses from 3–15 mm
- Precision round profile rail
- Strong suction cups for secure hold
- Includes titanium-coated tungsten carbide cutting wheel
- Includes breaking pliers & transport bag
Thanks to its modular design, the cutting length can be adjusted flexibly – perfect for changing requirements on construction sites or in workshop environments.

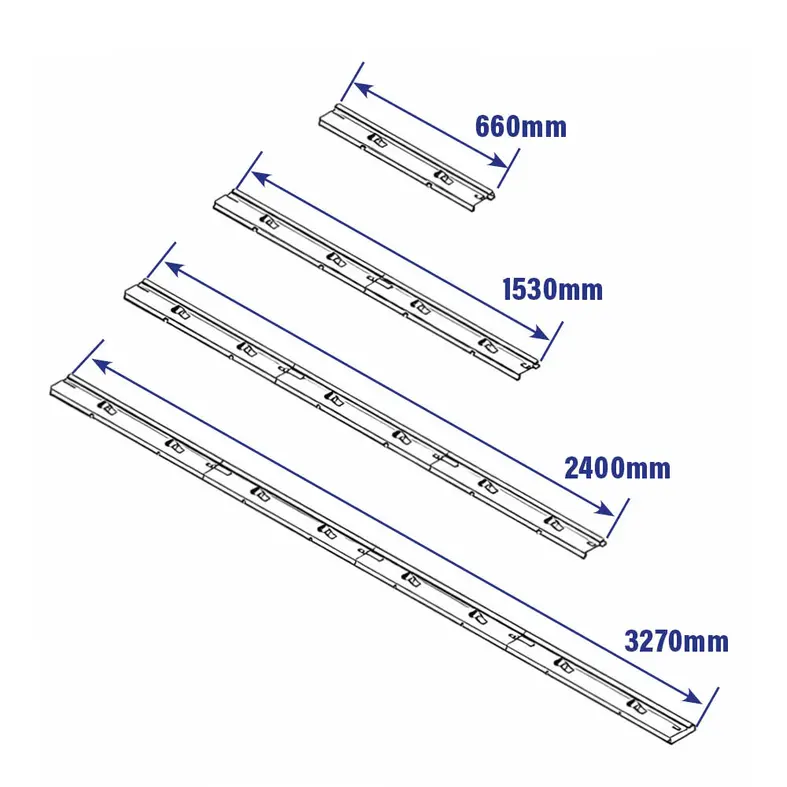

Flexible Cutting Lengths with Modular Rail System
The variable cutting length of the Raimondi tile cutter depends on the number of aluminum rails used:
- 1 rail: 66 cm
- 2 rails: 153 cm
- 3 rails: 240 cm
- 4 rails: 327 cm
This allows both smaller tiles and large-format porcelain slabs to be cut precisely and with full control.

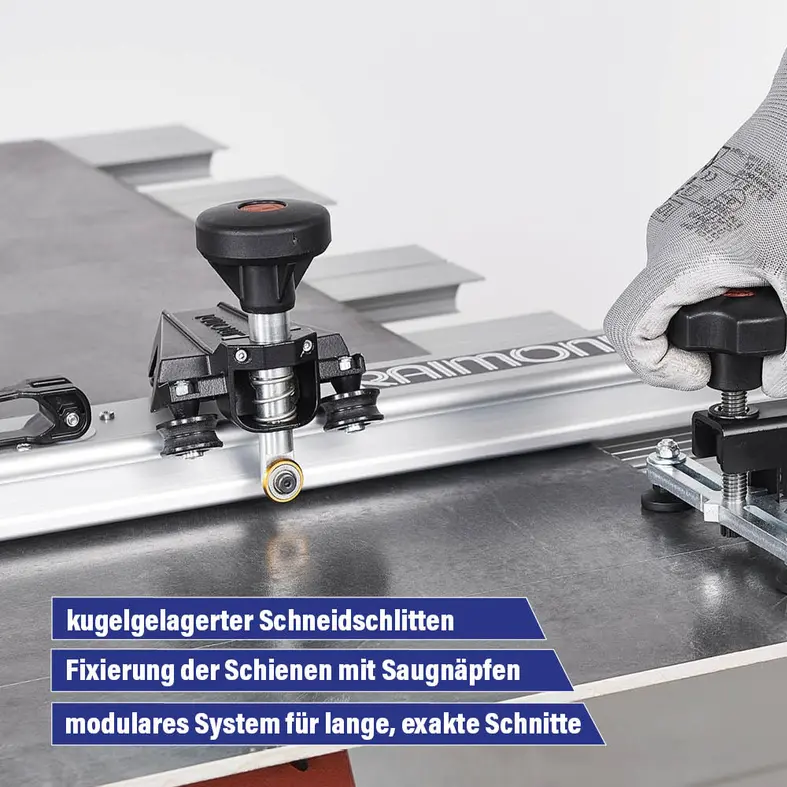

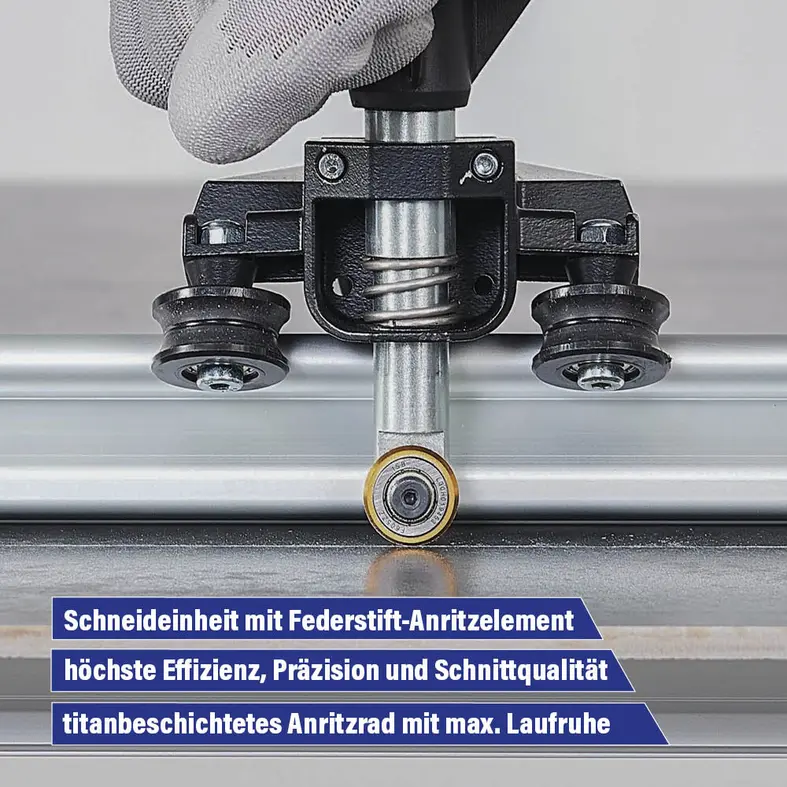

Precise Scoring with the Titanium Cutting Wheel
Scoring the tile is carried out using a ball-bearing aluminum scoring carriage with an adjustment mechanism.
Equipped with a titanium-coated tungsten carbide cutting wheel (Ø 20 mm), the Raimondi tile cutter ensures:
- clean scoring lines
- minimal effort
- precise breaking edges
The round profile rail provides exceptionally smooth movement and highly precise guidance.
Secure Hold Thanks to Powerful Suction Cups
Each rail is equipped with two double-lip suction cups (Ø 95 mm) made of non-marking rubber – a total of 8 suction cups.
These provide:
- maximum grip on the tile surface
- high cutting accuracy
- efficient and slip-free operation
Ideal for smooth, sensitive, and large-format tiles.

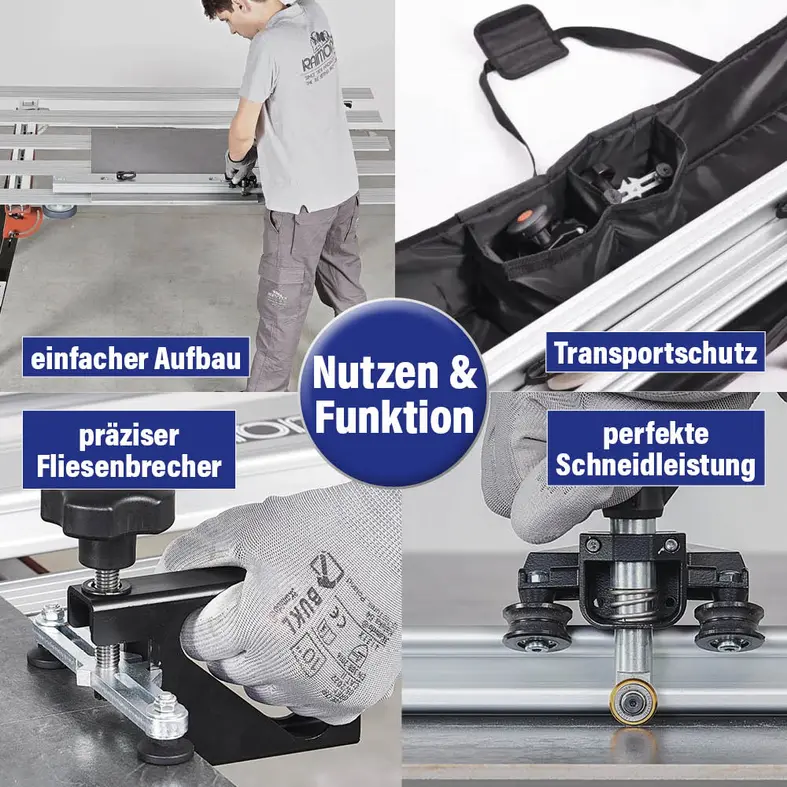

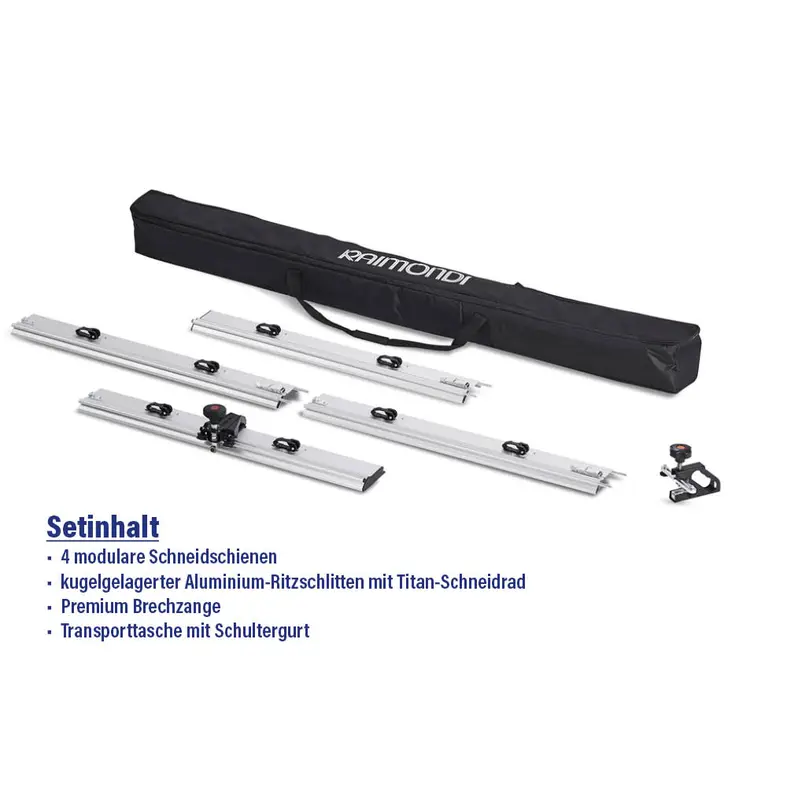

Complete Set for Professional Use
The Raimondi tile cutter comes with practical accessories:
- Breaking pliers for cleanly snapping scored tiles
- Durable transport bag with shoulder strap
for safe transport and optimal protection of rails and accessories
This ensures the entire system is always ready for use – both on-site and on the go.
Conclusion: Raimondi Tile Cutter
The Raimondi tile cutter is the ideal solution for professional tile installers and demanding craftsmen who value precision, flexibility, and quality. Especially when working with large-format tiles, this system stands out for its stability, accuracy, and well-designed features.
FAQ – Raimondi Tile Cutter
What types of tiles is the Raimondi tile cutter suitable for?
For standard and large-format tiles with a thickness of 3 to 15 mm.
The Raimondi tile cutter is suitable for both classic wall and floor tiles as well as large-format porcelain slabs. Thanks to its robust design and precise guide rail, tiles with a thickness of 3 to 15 mm can be cut cleanly and accurately. It is especially effective in professional applications involving large-format tiles.
What is the maximum cutting length?
Up to 327 cm, depending on the number of rails used.
The maximum cutting length is 327 cm and is achieved through the modular design. Depending on your needs, 1 to 4 aluminum rails can be combined. This makes the tile cutter highly versatile, suitable for both small tiles and very large slab formats.
How does the cutting system work?
The tile is scored first and then snapped using tile pliers.
The cutting process consists of two steps: First, the tile is precisely scored using the titanium-coated tungsten carbide cutting wheel. Then, the tile is snapped cleanly along the scored line using the included breaking pliers. This method ensures clean edges and minimizes material waste.
What are the advantages of the titanium-coated cutting wheel?
It enables precise cuts with minimal effort.
The titanium-coated tungsten carbide cutting wheel ensures especially clean and consistent scoring lines. Its high-quality coating makes it durable and resistant to wear. At the same time, it reduces the amount of force required, which is particularly beneficial when working with hard materials like porcelain stoneware.
How is cutting accuracy ensured?
Through the round profile rail and strong suction cups.
The combination of a precision round profile rail and powerful suction cups ensures maximum stability during cutting. The rail provides smooth and accurate guidance of the scoring unit, while the suction cups prevent slipping. This results in straight and clean cutting edges.
What is included in the delivery?
Rails, cutting wheel, breaking pliers, and transport bag.
The Raimondi tile cutter comes as a complete set, including the modular rail system, a titanium-coated cutting wheel, breaking pliers, and a durable transport bag with shoulder strap. This ensures the system is ready to use immediately and easy to transport and store safely.
Is the tile cutter suitable for mobile use?
Yes, thanks to the transport bag and modular design.
With the included transport bag and detachable rail system, the Raimondi tile cutter is easy to transport. This makes it ideal for use on construction sites or at changing work locations. At the same time, it maintains high stability and precision even in mobile applications.
Why is a modular rail system beneficial?
It allows flexible adaptation to different tile sizes.
The modular system allows you to adjust the cutting length individually. This means both small tiles and large slabs can be processed efficiently. This flexibility saves time, increases usability, and makes the tile cutter particularly cost-effective in professional use.
