Tileable Flush Plate for Geberit & TECE incl. Template – Royal Flush, art.-no. 16871

Discreet Bathroom Design with a Tileable Flush Plate

The Tileable Flush Plate by Royal Flush (Art. No. 16871) is the ideal choice to make visible plastic or metal toilet flush covers visually disappear. The universal flush button serves as a full replacement for the original factory plate: the front side is covered directly with matching wall tiles, creating a continuous, flush-mounted appearance without disruptive color breaks.

The result is a sophisticated and subtle solution for modern sanitary spaces, accessible bathrooms, hotels, or demanding renovation projects. The existing flush mechanism in the concealed cistern remains fully functional—only the visible front cover is replaced.

Universal Fit for Geberit, TECE & Many Other Brands

The universal flush plate was specially developed for flexible use on common concealed toilet modules. It is excellently suited as a replacement solution for:

• Flush plate for Geberit (suitable for Sigma, Delta, and Omega)
• TECE flush plate / TC flush plate
• Roca, Alca, Pucci
• Other identically constructed concealed flush systems

With the two included actuation rods, the mechanics can be precisely adjusted to the depth of the respective cistern. This ensures reliable and smooth operation at all times.

Includes 3-in-1 Template for Accurate Marking

To ensure the tile cover can be precisely transferred onto the carrier panel, a practical 3-in-1 template is included in the scope of delivery. It helps the installer accurately measure and mark the necessary cutouts.

Installation must be performed by an experienced tiler using appropriate expertise and professional tile-cutting tools (e.g., wet saw or diamond tools). A precise cut ensures clean edges and allows the front panel to operate freely.

Magnetic Holder & Robust PET-G

The 205 mm x 120 mm base plate consists of durable PET-G. It is equipped with four strong neodymium magnets that securely hold the tiled front panel inside the frame construction.

This magnetic mounting allows frameless installation without visible screws. For future inspection, revision, or adjustment work on the concealed cistern, the plate can be removed at any time without tools. During installation, ensure that magnetic surfaces remain free of tile adhesive and grout material.

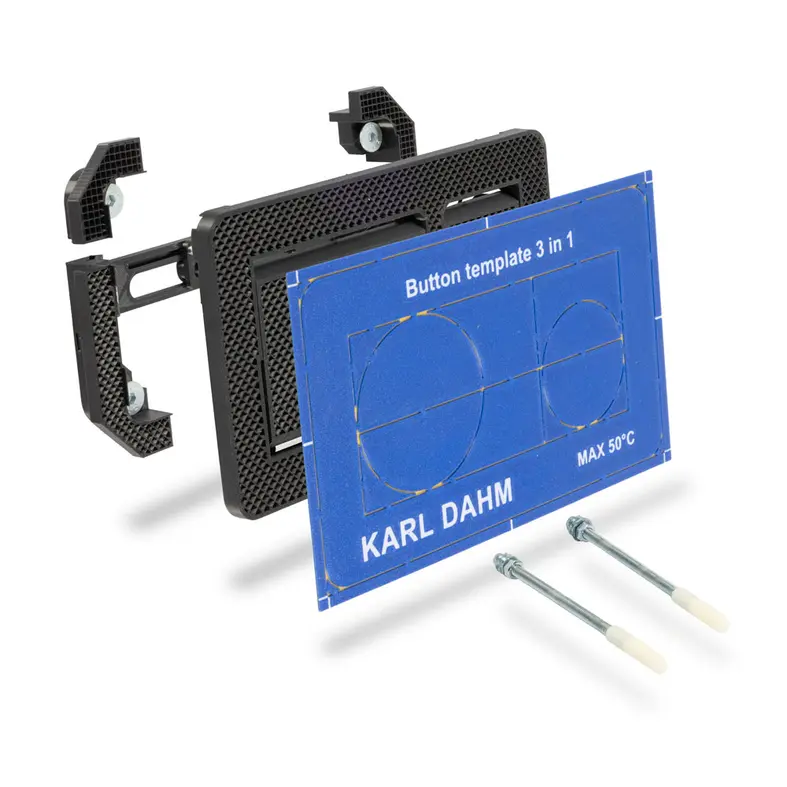

Scope of Delivery for Flush Plate Art. No. 16871

• Front panel made of PET-G (205 mm x 120 mm)
• 4 neodymium magnets (integrated/enclosed)
• 2 adjustable actuation rods
• Practical 3-in-1 template for tile cutting

Frequently Asked Questions (FAQ)

What is the Tileable Flush Plate by Royal Flush (Art. No. 16871)?

A universal flush button/replacement flush plate for concealed toilet modules. The front panel is covered with the wall tile, seamlessly integrating it into the wall design.

Which brands are compatible with the flush plate?

The flush plate fits systems by Geberit (Sigma, Delta, Omega), TECE, Roca, Alca, Pucci, and other identically constructed modules.

What are the dimensions of the flush plate?

The base panel measures 205 mm x 120 mm and is made of PET-G.

Which template is included with the product?

The package includes a 3-in-1 template that assists the tiler in accurately transferring dimensions onto the tile.

How is the tiled front panel attached?

It is attached using four neodymium magnets. This holds the plate securely to the wall while allowing easy, tool-free removal for maintenance work.
